LCD Display Solution
67.8-inch Stretched Bar LCD Display
A large-format ultra-wide LCD display designed for transportation signage, commercial displays and customized visual communication systems.
Product Overview
Developed around your application.
The 67.8-inch Stretched Bar LCD Display delivers an extra-wide visual format for transportation signage, commercial displays and large-scale customized display projects.
67.8-inch extra-wide display formatLarge-scale visual communicationTransportation and commercial signageOEM & ODM customization support
Specifications
A technical platform configured for the project
Final specifications are confirmed after engineering review, application evaluation and prototype validation.
| Display Size | 67.8 inch |
| Model Number | ZF678ADZ-TE1 |

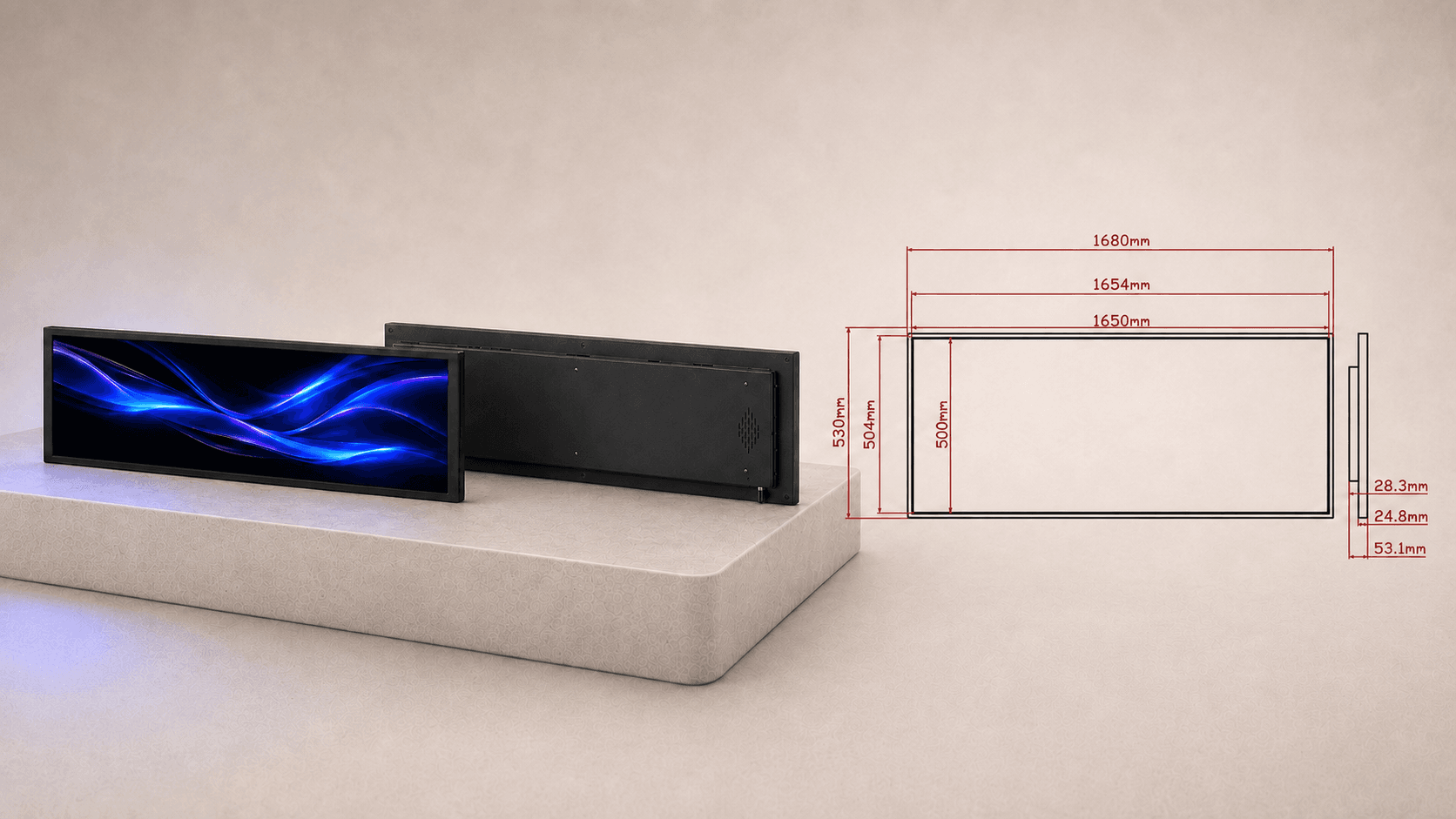

| Active Display Area | 1650(H) × 500(V) mm |
| Outline Dimension | 1680(H) × 530(V) × 53.1(D) mm |
| Resolution | 2160 × 1164 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Min.) (CR≥10) |
| Viewing Direction | Full Viewing Angle |
| Touch | Touch Screen |
| Mainboard | R9520 |
| Power Supply | 220V AC |
| Language | Chinese and English (More languages optional) |
| Refresh Rate | 60Hz |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
Applications
Designed for large-format ultra-wide display applications
Airport and transportation signageCommercial advertising displaysPublic information systemsLarge retail environments
Customization
Large-format customization for specialized projects
Custom aspect ratio designHigh brightness optionsStructural integrationSystem interface solutions
Project Support
Engineering support for large-scale display projects
From technical evaluation to production delivery, we provide customized solutions for large-format LCD display projects requiring professional engineering support.
