LCD Display Solution
32-inch LCD Display
A 32-inch ultra-wide LCD display designed for digital signage, retail shelves, smart vending machines and customized commercial display applications.
Product Overview
Developed around your application.
The 32-inch LCD Display is designed for digital signage, retail shelves, smart vending machines and customized commercial display applications. Its ultra-wide format provides flexible solutions for space-limited environments.
Specifications
A technical platform configured for the project
Final specifications are confirmed after engineering review, application evaluation and prototype validation.
| Display size | 32 inch |
| Model | LD320EUY-SQA3 |

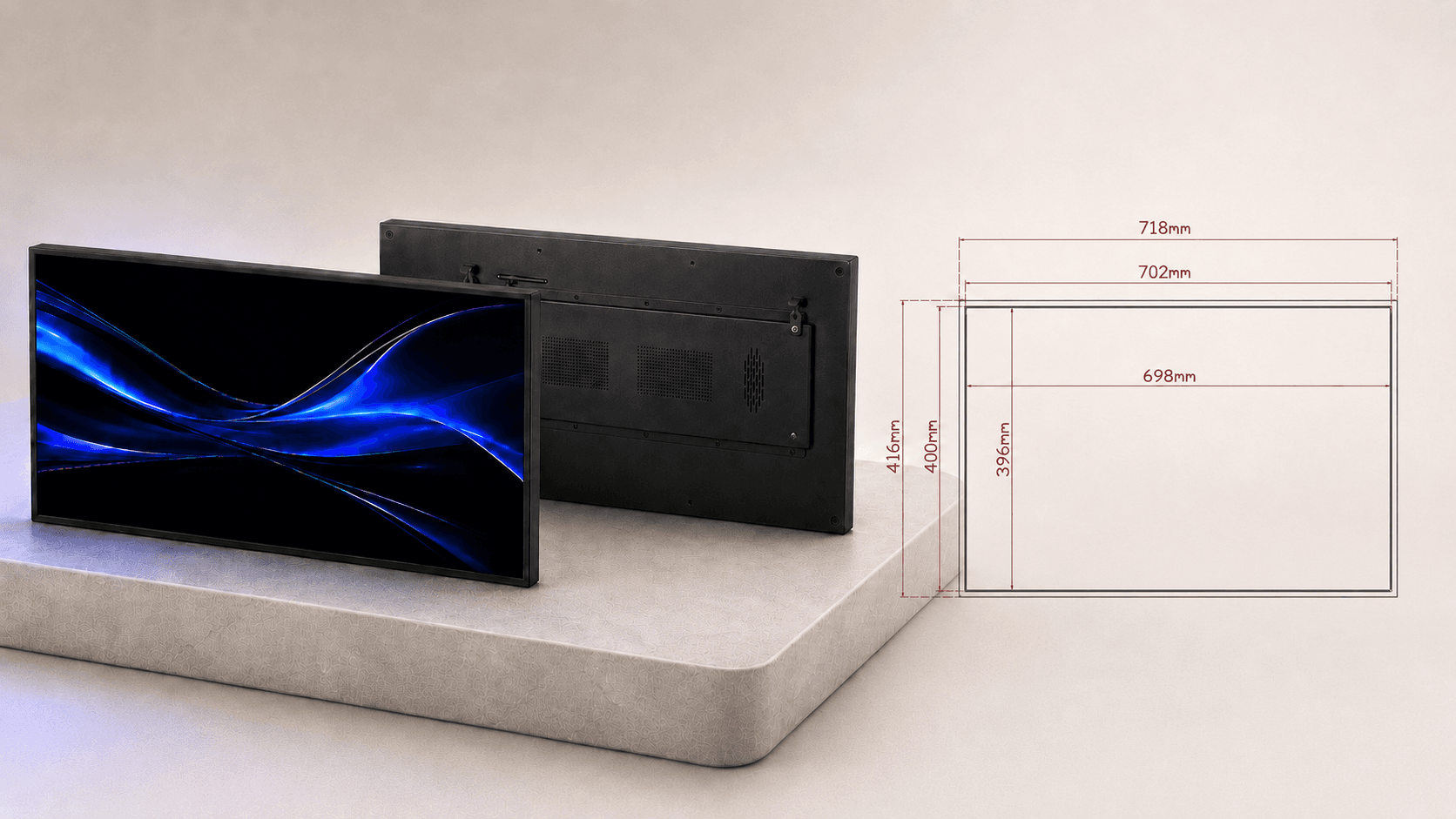

| Display Area | 698mm(H) × 396mm(V) |
| Viewing Area | 702mm(H) × 400mm(V) |
| Outline Dimension | 718mm(H) × 416mm(V) × 53.1mm(D) |
| Resolution | 1920 × 1080 |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 1300:1 (Typ.) |
| Viewing Angle | 178(H) / 178(V) |
| Best Viewing Angle | Full viewing angle |
| Main Board | H35 |
| Operating System | Android 9.0 |
| Memory | 1GB + 8GB |
| Refresh Rate | 60Hz |
| Language | Multi-language support |
| Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 60℃ |
| Interface | HDMI, USB, LVDS, eDP and optional system integration |
Applications
Designed for ultra-wide commercial display applications
Customization
Flexible customization for different integration requirements
Project Support
From prototype validation to stable production
We provide engineering support, prototype verification and production solutions for customized 32-inch bar LCD display projects, helping customers achieve reliable integration from concept to mass production.
