23.1-inch Shelf Display
A 23.1-inch shelf display designed for smart retail shelves, digital price tags, product information displays and commercial retail applications.
Product Overview
Developed around your application.
The 23.1-inch Shelf Display is designed for smart retail environments, providing clear product information, digital price display and advertising content solutions. Its compact structure and flexible installation design make it ideal for modern retail shelves and customized commercial equipment.
Specifications
A technical platform configured for the project
Final specifications are confirmed after engineering review, application evaluation and prototype validation.
| Display Size | 23.1 inch |
| Panel Size | 23.1" |
| Active Display Area | 585.6(H) × 48.19(V) mm |
| Backlight Type | WLED Edge Type |
| LCD Panel Life | 30000 hours |
| Aspect Ratio | 3:1 |
| Display Color | 16.7M |
| Max Resolution | 1920 × 158 |
| Refresh Rate | 60Hz |
| Viewing Angle | 89° / 89° / 89° / 89° (Typ.) |
| Brightness | 500 cd/m² |
| Contrast Ratio | 3000:1 |
| Response Time | 6ms |

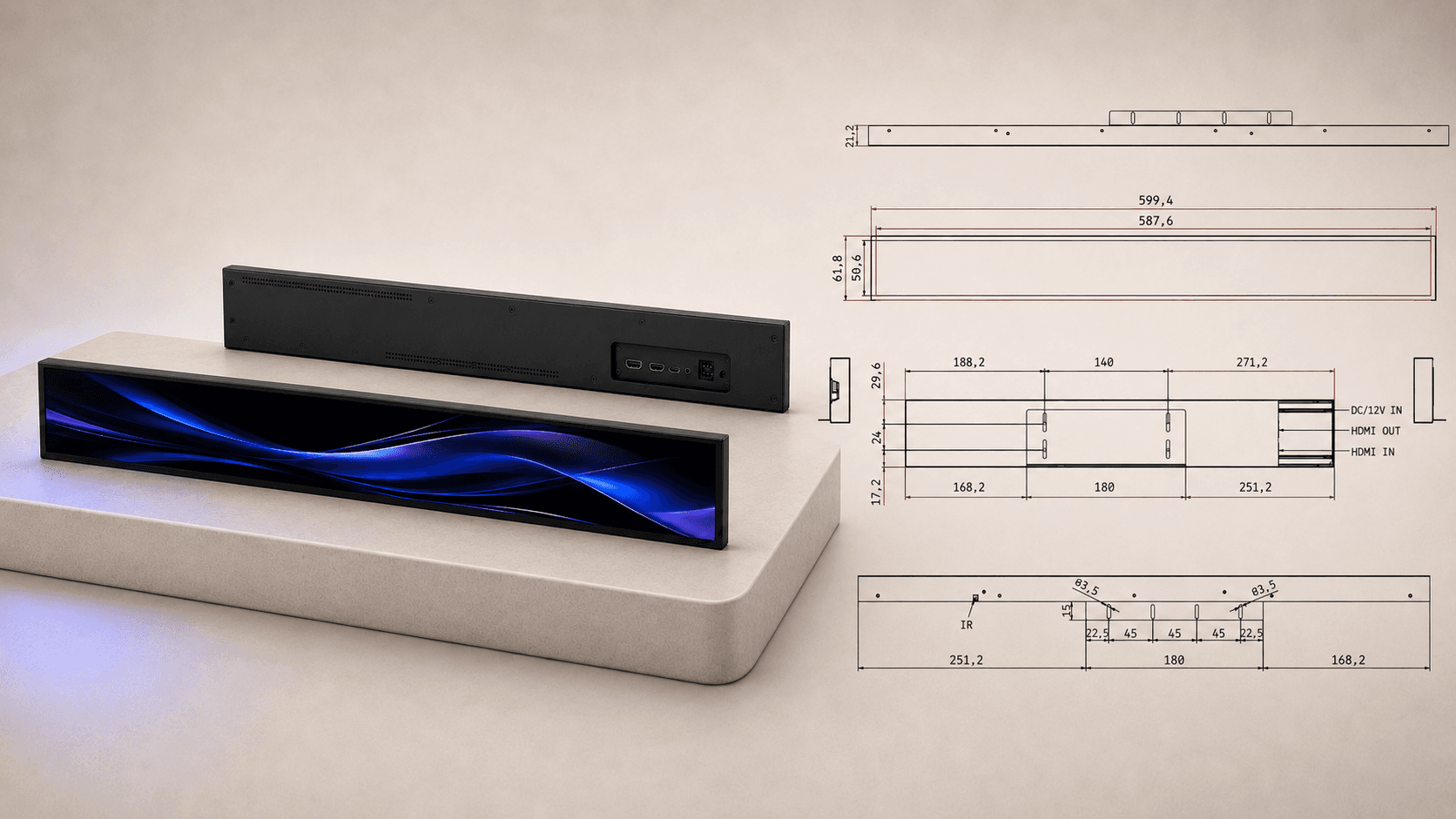

| Outline Dimension | 599.4 × 61.8 × 21.2 mm |
| Packing Size | 820 × 300 × 140 mm (5pcs/CTN) |
| Net Weight | 4.25KG (5pcs/CTN) |
| Gross Weight | 6KG (5pcs/CTN) |
| Input Interface | HDMI IN ×1, HDMI OUT ×1, DC ×1 |
| Monitor | 1 PCS |
| Adapter | 1 PCS |
| Wall Mount | 1 PCS |
| Remote Control | 1 PCS |
| Power Consumption | ≤12W |
| Standby Power | ≤0.5W |
| Operating Voltage | 100V-240VAC 50/60Hz |
| Storage Environment | Temperature: -20℃~60℃; Humidity: 5%~95% |
| Working Environment | Temperature: 0℃~50℃; Humidity: 10%~85% |
| Mainboard | CTF300L-PX30 |
| System | Android 8.1 |
| Memory | 2GB + 32GB |
Applications
Designed for smart retail and digital shelf solutions
Customization
Customized solutions for modern retail environments
Project Support
Supporting retail display projects from design to delivery
We support customized shelf display projects with engineering assistance, prototype evaluation and production management to ensure reliable performance in retail environments.
