LCD Display Solution

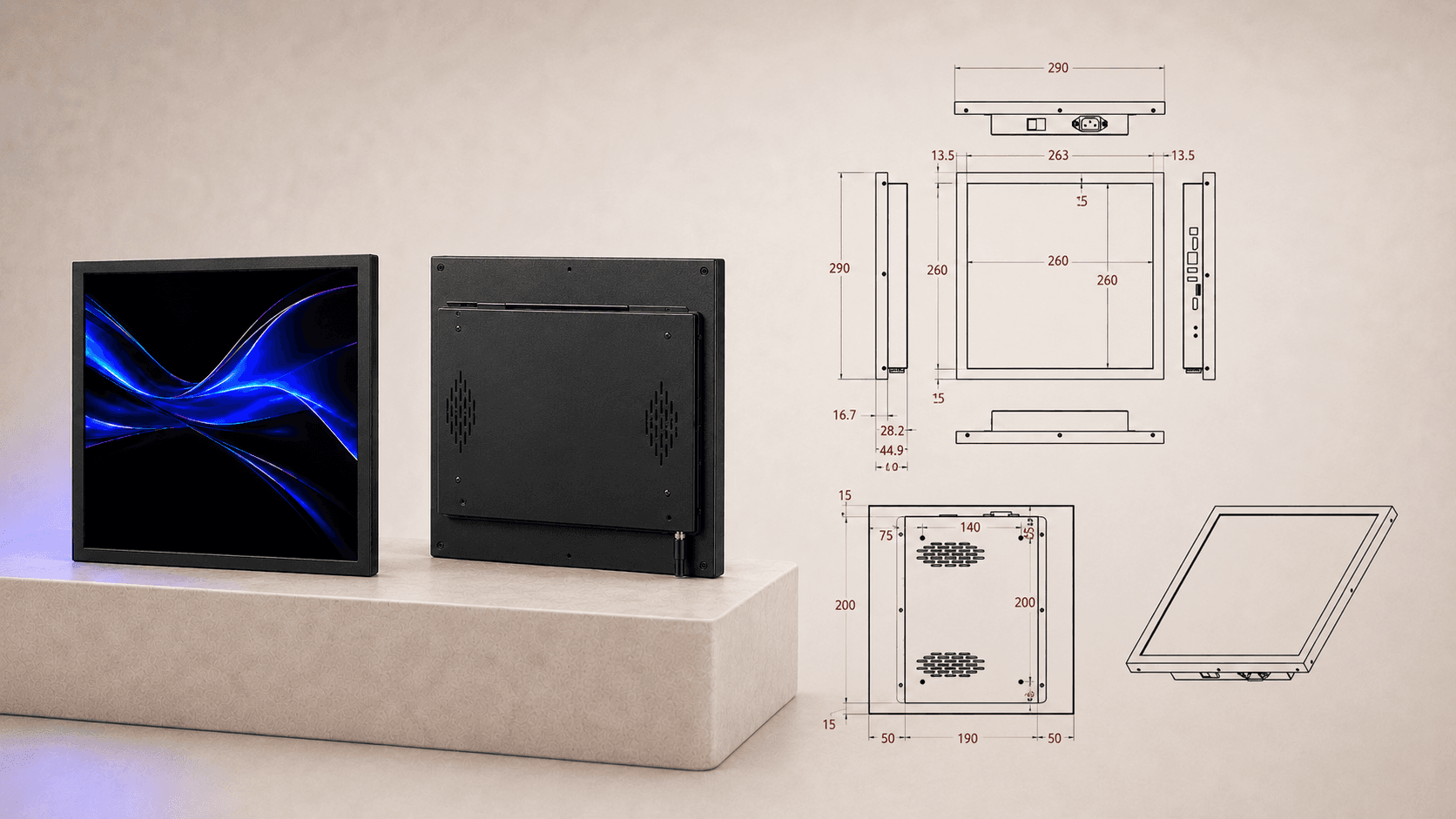

14.5-inch Square LCD Display
A compact square LCD display solution designed for industrial equipment, control systems, smart devices and customized OEM applications.
Product Overview
Developed around your application.
The 14.5-inch Square LCD Display provides a compact square display solution for industrial equipment, control systems, smart devices and customized OEM applications.
14.5-inch square display formatIndustrial control integrationCompact smart device applicationsOEM & ODM customization support
Specifications
A technical platform configured for the project
Final specifications are confirmed after engineering review, application evaluation and prototype validation.
| Display Size | 14.5 inch |
| Model Number | ZF145AJ1-TE1 |
| Active Display Area | 260(H) × 260(V) mm |
| Outline Dimension | 290(H) × 290(V) × 44.9(D) mm |
| Resolution | 1080 × 1042.9 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Viewing Direction | Full Viewing Angle |
| Mainboard | HDMI display board / M66 motherboard + 2GB + 32GB optional |
| Memory | 4GB + 32GB |
| Refresh Rate | 60Hz |
| Net Weight | 3.1kg |
| Packing Dimension | 36.5 × 35 × 12.7cm |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
Applications
Designed for compact industrial and commercial systems
Industrial equipmentControl panelsSmart devicesInteractive terminals
Customization
Customized solutions for compact display integration
Display configurationTouch panel integrationMechanical designInterface customization
Project Support
Reliable support for customized display projects
We provide engineering support, prototype testing and production services to help customers integrate square LCD displays into various equipment and systems.
